Small Plastic Project Enclosure - Weatherproof with Clear Top

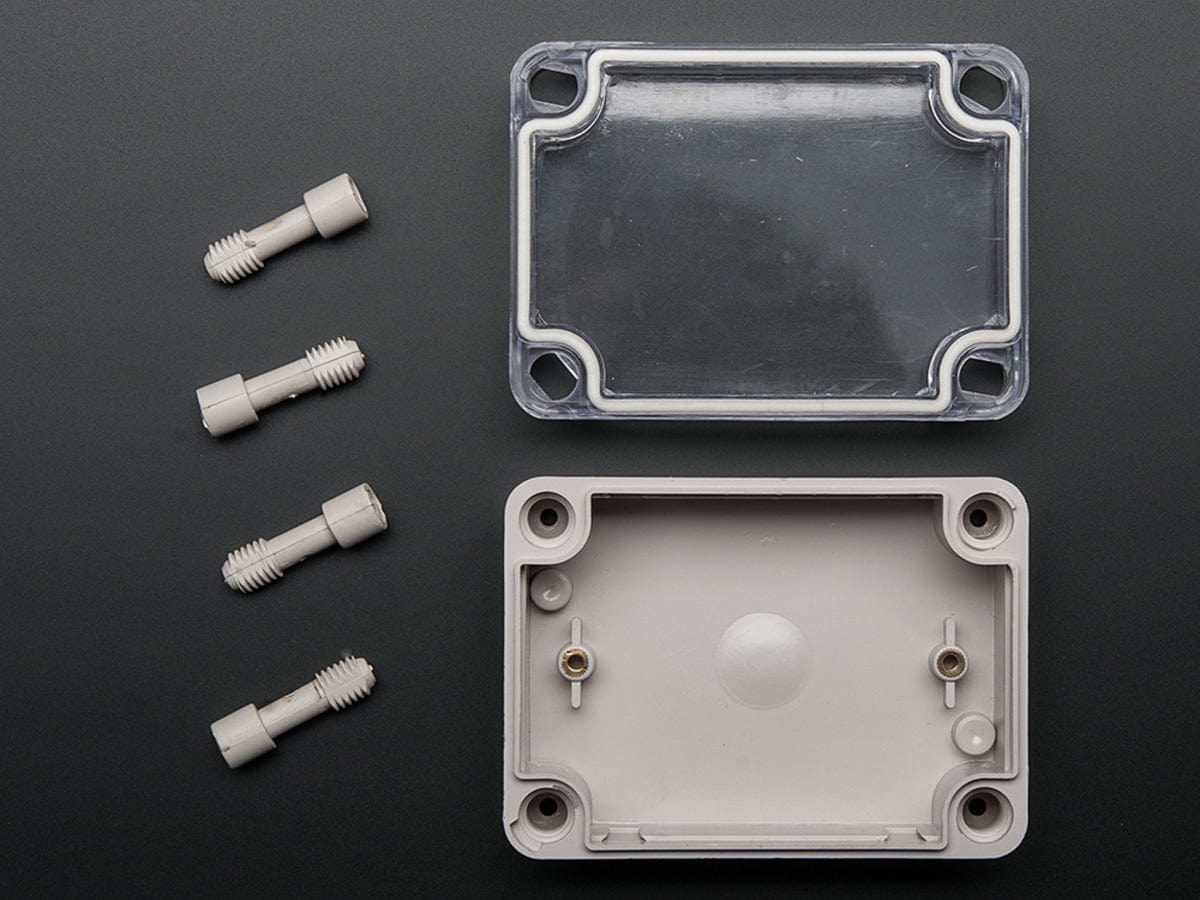

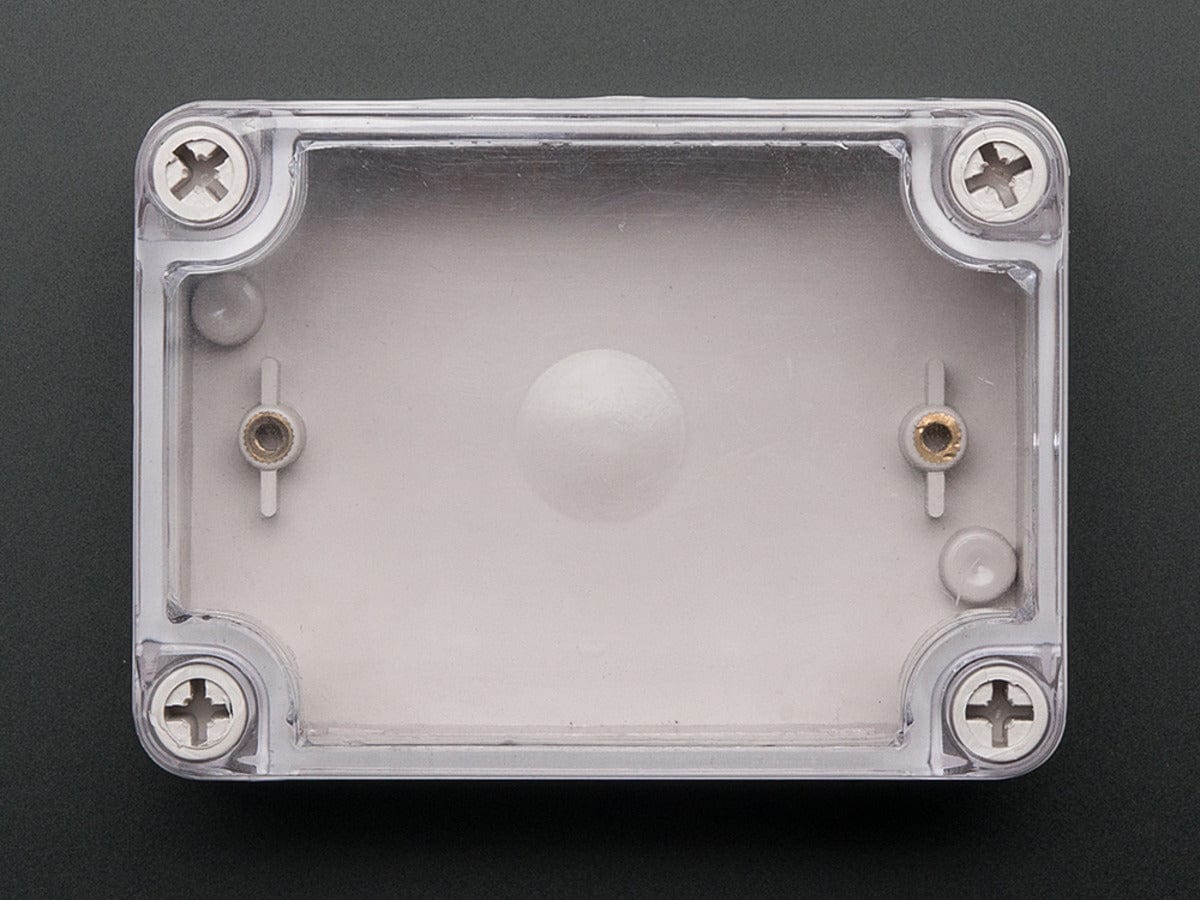

Store your project safe and sound in this nice weatherproof box with a clear top. We picked up this box because we like the machinable ABS plastic body and tough clear polycarbonate cover, the built in weatherproof gasket seal, and the easy-open screws that can be taken apart as many times as you wish without worrying about cracking or stripping.

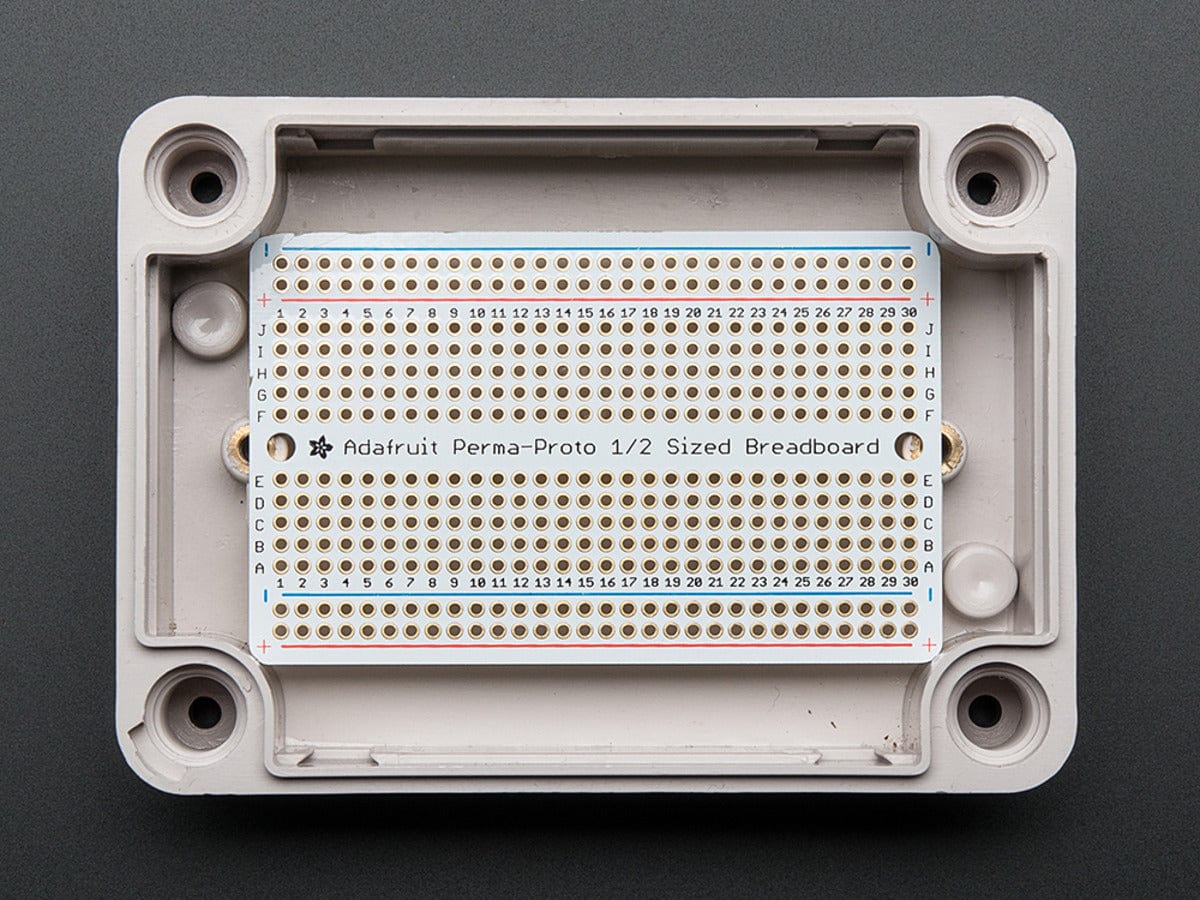

This box measures 80mm x 110mm x 45mm externally. You can fit an Adafruit Metro, Raspberry Pi Zero, Feather, or a half-size Perma-Proto (if you clip or sand down a corner a few mm), but it won't fit the bigger Raspberry Pi's with the USB and Ethernet jacks. It will not fit an Arduino Mega, Beaglebone, Menta or Minty Perma-proto.
We also have a version with mounting flanges and two PG-7 cable glands.
Technical Details
Download a diagram with dimensions!
- Note: The two (2) threaded inserts at the interior base of the enclosure are about 8mm high. If the base of your board/project does not rest between the threaded inserts, the adjusted height of the enclosure as a whole is 30mm.
- Exact weight: 134.41g

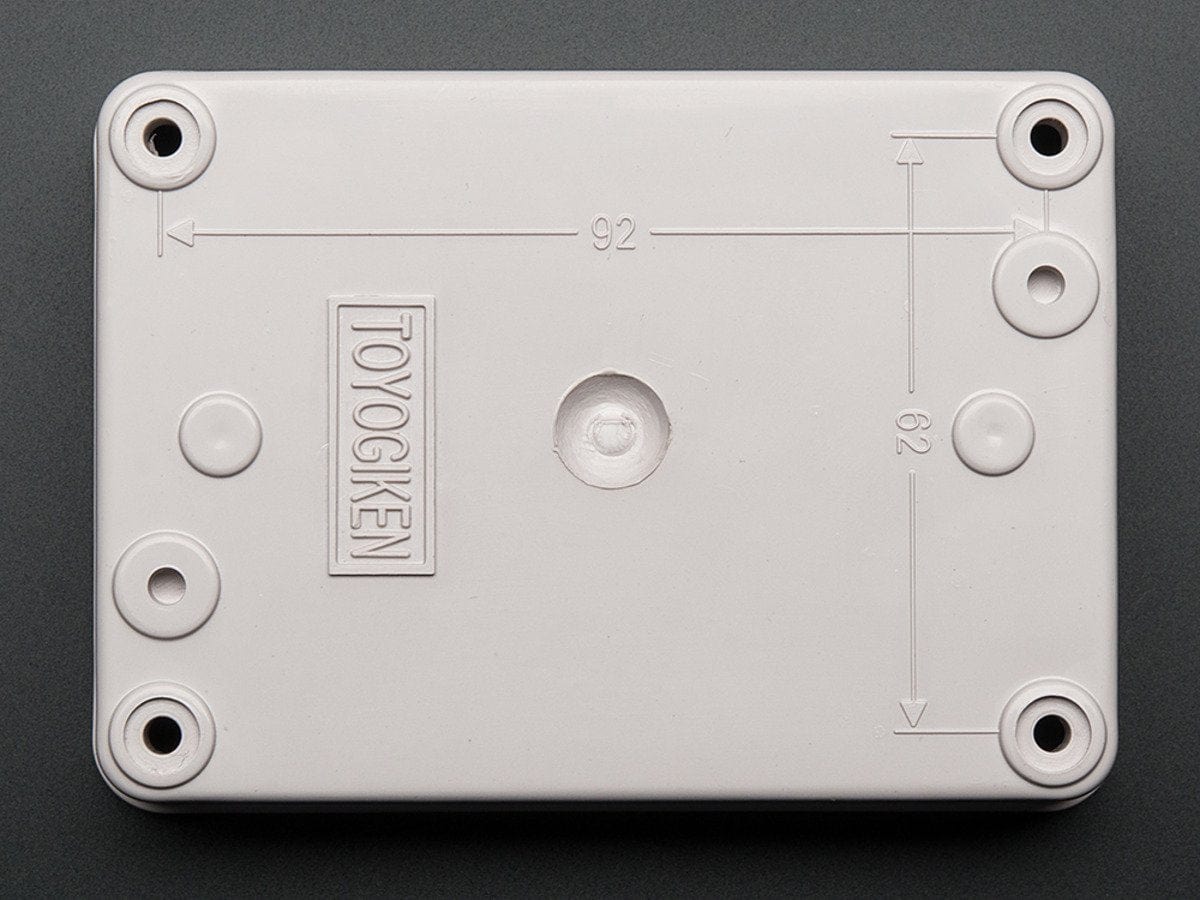

- 80mm x 110mm x 45mm / 3.2" x 4.4" x 1.8" external size
- IP66 weatherproof rating
- The internal mounting bosses are M4 thread
