8MP 1080P USB Camera Module - 1/4” CMOS IMX219 Mini UVC

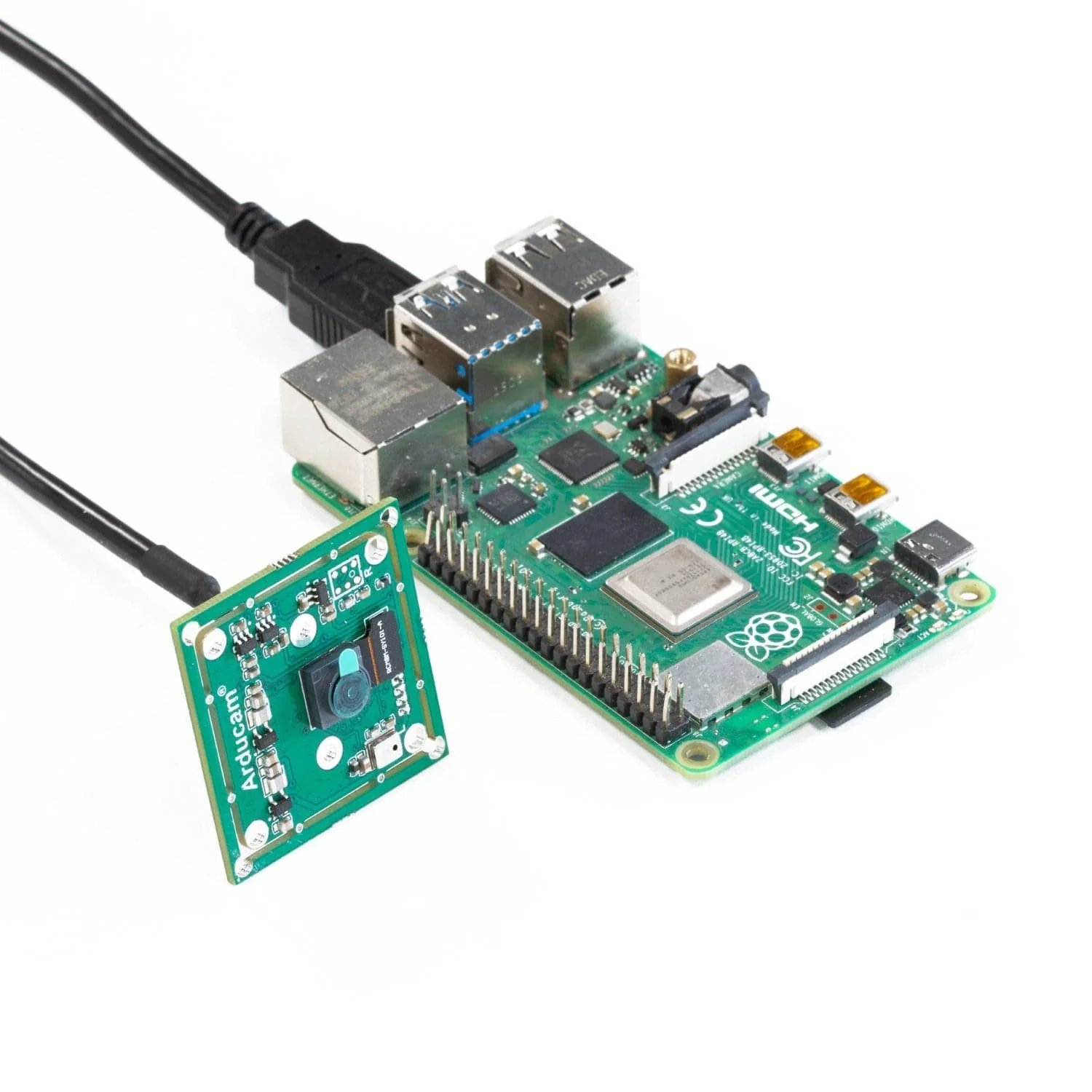

An 8MP camera module for your Raspberry Pi - without the fuss of fiddly flex cables!
This Arducam IMX219 camera module is an 8MP, UVC compliant, USB 2.0 camera module which works with the Raspberry Pi as well as Windows, Linux and Android (Mac OS doesn't seem to like this one!).
The camera module features an 8MP IMX219 sensor for sharp images and accurate colour reproduction and comes with a 1m USB UVC cable.
Being just 38mm x 38mm in size and featuring handy mounting holes, the camera module can be installed in small enclosures for a home surveillance system, monitoring a 3D Printer, dashcam or other machine vision application.
Note: Raspberry Pi not included. As of 23/03/21 this module no longer features a micro-USB connection.
Resources
Package Contents
- 1x Arducam IMX219 USB2.0 Camera Module
- 1x 1m UVC USB cable
Features
- Sensor: 8MP 1/4” IMX219
- Resolution: 8MP 3264H x 2448V
- Data Format: MJPG/YUY2
-
Frame Rates:
- MJPG 15fps @ 3264x2448, 30fps @ 1920x1080
- YUY2 30fps @ 640x 480.
- Data Format: MJPG/YUY2
- Field of View (FOV)：H=62.2°, V=48.8°
- IR Sensitivity: Integral IR filter, 650nm IR Filter, visible light only
- Adjustable Features: Brightness, Contrast, Saturation, Sharpness, Gamma, White balance.
- Power Supply: USB Powered 5V
- Working Current: MAX 200mA
- Operating Temp.: -4°F~167°F (-20°C~+75°C)

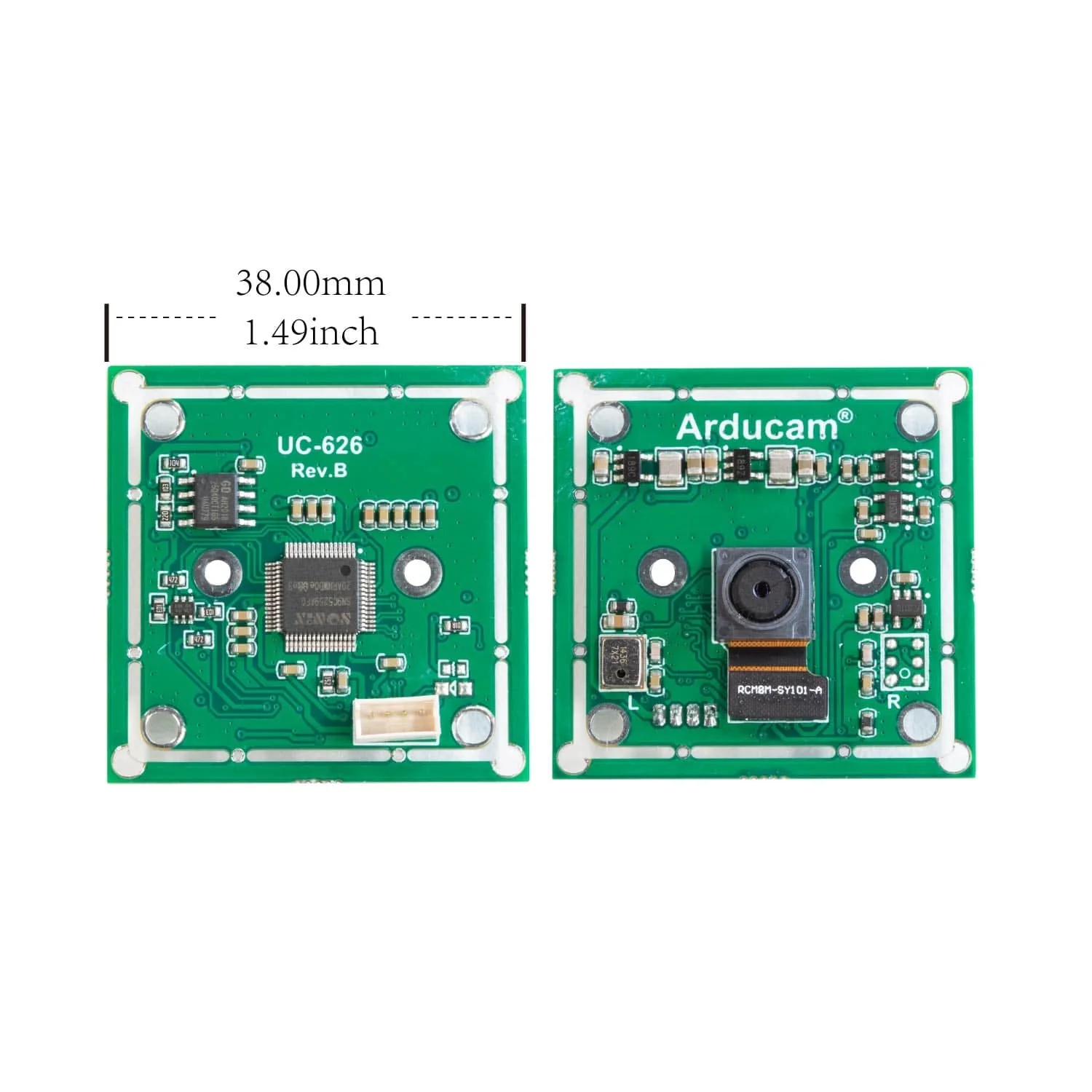

- Dimension: 38mm x 38mm
Original: $36.00
-65%$36.00
$12.60
Description
An 8MP camera module for your Raspberry Pi - without the fuss of fiddly flex cables!
This Arducam IMX219 camera module is an 8MP, UVC compliant, USB 2.0 camera module which works with the Raspberry Pi as well as Windows, Linux and Android (Mac OS doesn't seem to like this one!).
The camera module features an 8MP IMX219 sensor for sharp images and accurate colour reproduction and comes with a 1m USB UVC cable.
Being just 38mm x 38mm in size and featuring handy mounting holes, the camera module can be installed in small enclosures for a home surveillance system, monitoring a 3D Printer, dashcam or other machine vision application.
Note: Raspberry Pi not included. As of 23/03/21 this module no longer features a micro-USB connection.
Resources
Package Contents
- 1x Arducam IMX219 USB2.0 Camera Module
- 1x 1m UVC USB cable
Features
- Sensor: 8MP 1/4” IMX219
- Resolution: 8MP 3264H x 2448V
- Data Format: MJPG/YUY2
-
Frame Rates:
- MJPG 15fps @ 3264x2448, 30fps @ 1920x1080
- YUY2 30fps @ 640x 480.
- Data Format: MJPG/YUY2
- Field of View (FOV)：H=62.2°, V=48.8°
- IR Sensitivity: Integral IR filter, 650nm IR Filter, visible light only
- Adjustable Features: Brightness, Contrast, Saturation, Sharpness, Gamma, White balance.
- Power Supply: USB Powered 5V
- Working Current: MAX 200mA
- Operating Temp.: -4°F~167°F (-20°C~+75°C)
- Dimension: 38mm x 38mm
