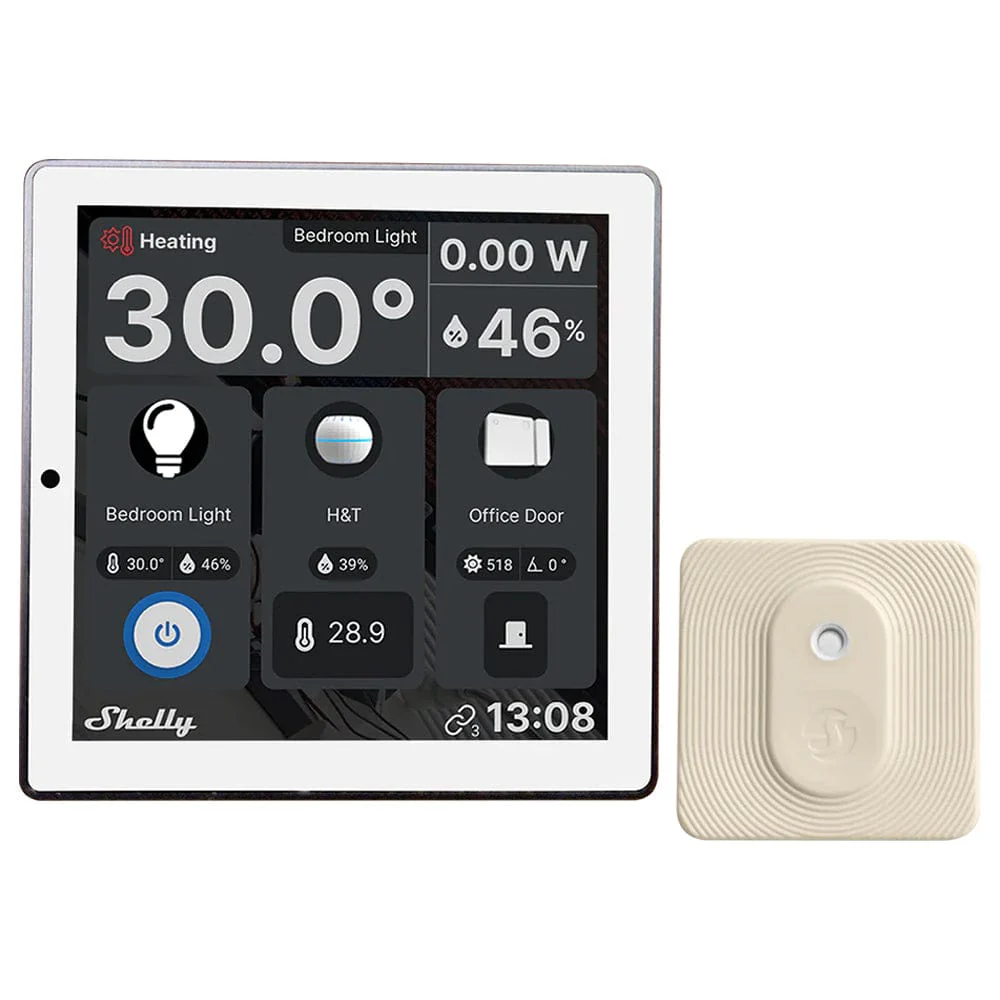

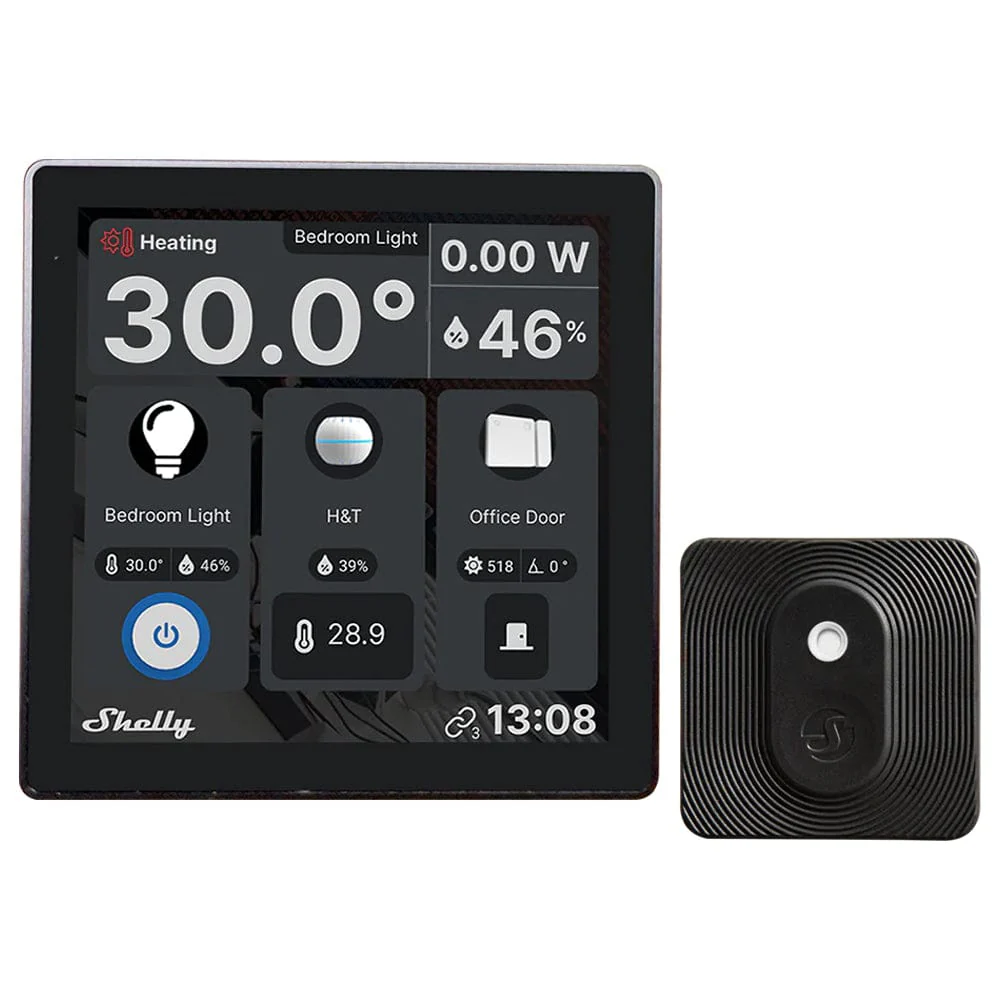

The Shelly Wall Display + H&T is a bundle of the Shelly Wall Display and a Shelly BLU H&T (Humidity & Temperature Sensor), available in two different colour options (the wall display is no longer available as a standalone product).

The Shelly Wall Display is a sophisticated 4" display that brings intuitive control and seamless monitoring to every corner of your smart home. Whether it's dimming the lights, adjusting the room's ambience, or ensuring optimal energy efficiency, this smart control panel makes home management simple. The highly customizable home screen becomes a reflection of your preferences, offering a quick glimpse of essential home details. Together with the included Shelly BLU H&T, it can function as a smart thermostat, allowing you to easily fine-tune your heating or cooling.

The display also has an integrated 5A relay for appliance control. The latest (Beta?) update to the software for the Shelly Wall Switch also allows Home Assistant control!

The Shelly BLU H&T is a compact water and dust-resilient Bluetooth sensor that precisely measures temperature and humidity levels, powered by a CR2032 lithium battery (included).

We offer this display bundle in two different colour packs - select an option before adding to cart.

The white wall display bundle comes with an ivory BLU H&T sensor.
The black wall display bundle comes with a black BLU H&T sensor.

Video

Note the video below only shows the wall display - the included Shelly BLU H&T is not featured.

⚠️Caution - Read Before Buying⚠️

Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

Features

4" Smart Wall Display
Integrated 5A relay for appliance control; neutral required
Embedded sensors for Temperature, Humidity & LUX
Power consumption monitoring of all devices in your chosen room
Can function as a room thermostat
Easy navigation and customizable home screen and brightness
Create scenes and schedules

Specifications

Size (HxWxD)	85x85x30 mm / 3.35x3.35x1.18 inch
Weight	180 g / 6.35 oz
Screw terminal max torque	0.4 Nm / 4.43 lbin
Conductor cross-section	0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Mounting	Wall box
Shell material	Plastic, aluminum, glass
Shell colour	Black or white
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Power supply	230 VAC, 50/60Hz
Power consumption	< 1 W
Max. switching voltage	230 VAC
Max. switching current	5 A
Internal-temperature sensor	No
Ambient temperature sensor	Yes
Humidity sensor	Yes
Light sensor	Yes
Wi-Fi
Protocol	802.11 b/g/n
RF band	2401 - 2495 МHz
Max. RF power	< 20 dBm
Range	Up to 30 m / 100 ft indoors Up to 50 m / 160 ft outdoors
	(Depends on local conditions)
Bluetooth
Protocol	4.2
RF band	2400 - 2483.5 MHz
Max. RF power	< 4 dBm
Range	Up to 10 m / 33 ft indoors Up to 30 m / 100 ft outdoors (Depends on local conditions)
CPU	MTK6580
RAM	1 GB
Flash	8 GB
Schedules	20
Webhooks (URL actions)	20 with 2 URLs per hook…
Scripting	No
MQTT	Yes

Resources

Shelly Product Documentation
Printed User Guide (as found within the package)
Components and APIs
Declaration of Conformity
UK PSTI ACT Statement of Compliance
Device Identification
- Device name: Shelly Wall Display
- Device model: SAWD1
EAN:
- White: 3800235262603
- Black: 3800235262597

Handy Shelly Resources

Shelly Cloud
Shelly App
Home Assistant Shelly Integration
Shelly Community Forum
Shelly Facebook Support Group
Shelly Knowledgebase
Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
Shelly Developer API

Package Contents

1x Shelly Wall Display (black or white, select option before adding to cart)
1x Shelly H&T (ivory or black - ivory comes with the white display, black with black display)
1x User Guide
